Van Norman No12 milling machine

Email: Jim Hearne



Scanned in pages from my Dads Van Norman No12 milling machine.

These are scans of photocopies of a rather well used looking original manual.

Click thumbnails for 150 dpi / approx 1200 x 1600 images (~450k each)

Don't be put off by the thumbnails, all the pages are readable, on screen at least

Hold the cursor over the thumbnails for a short description of the page.

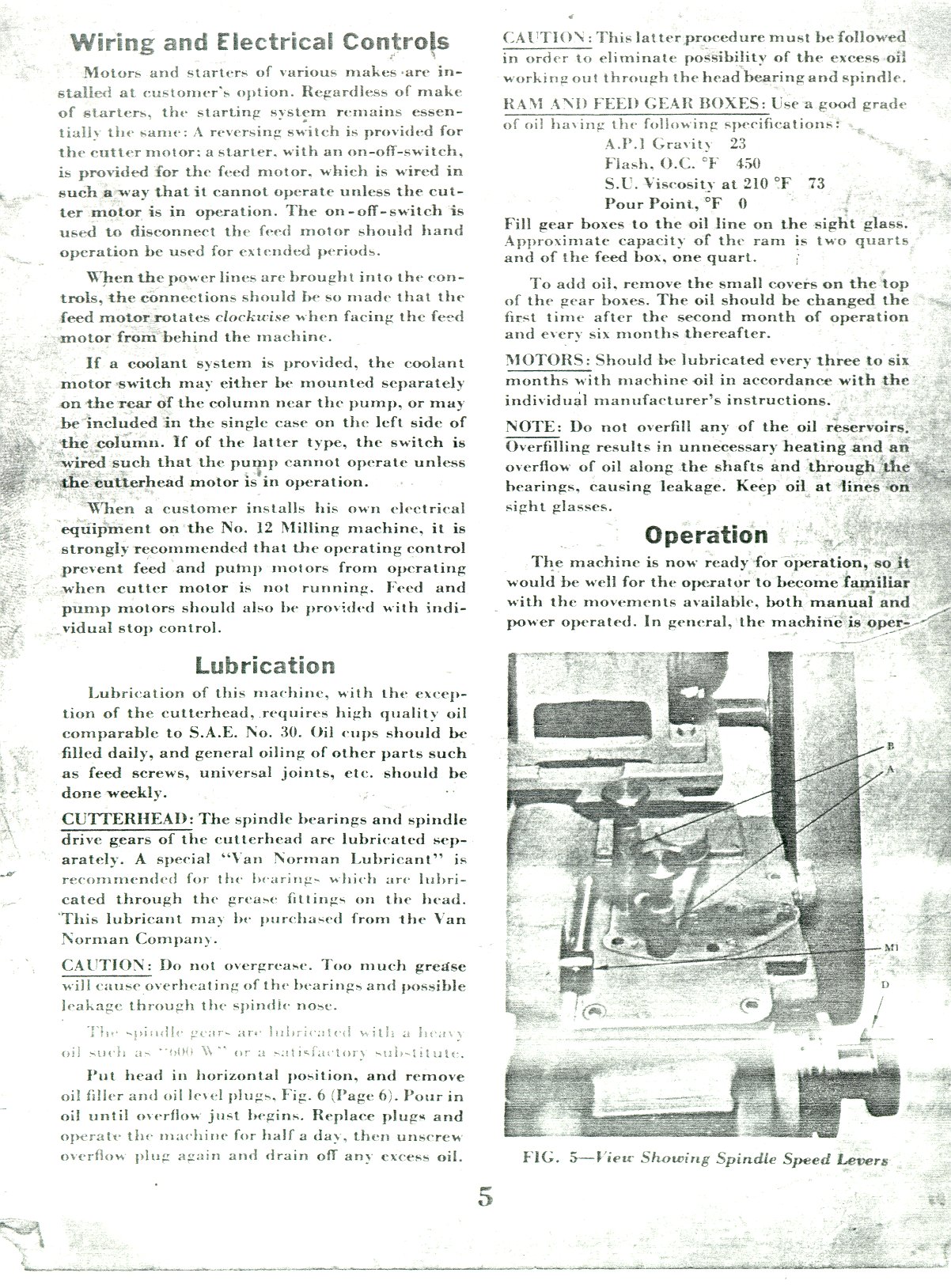

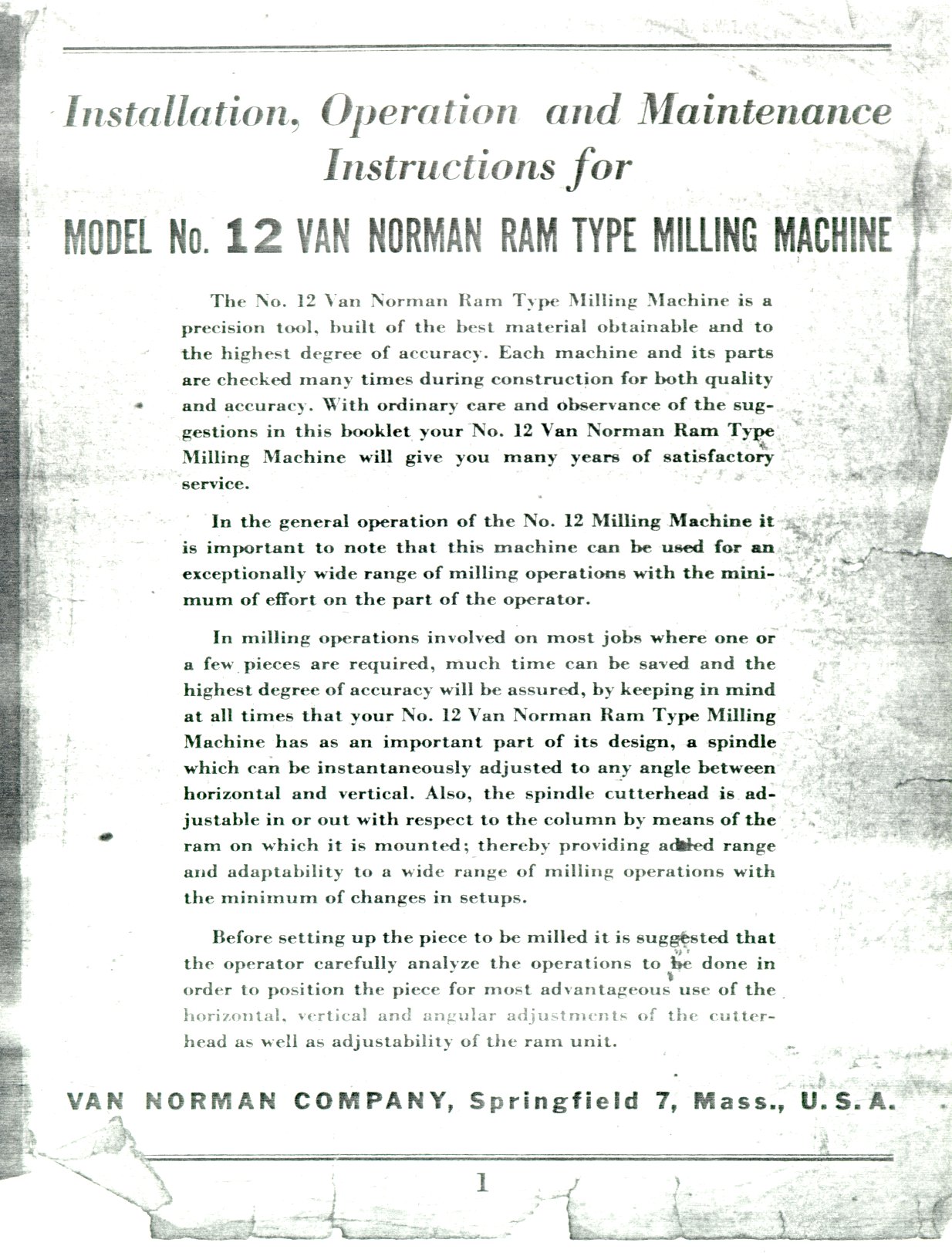

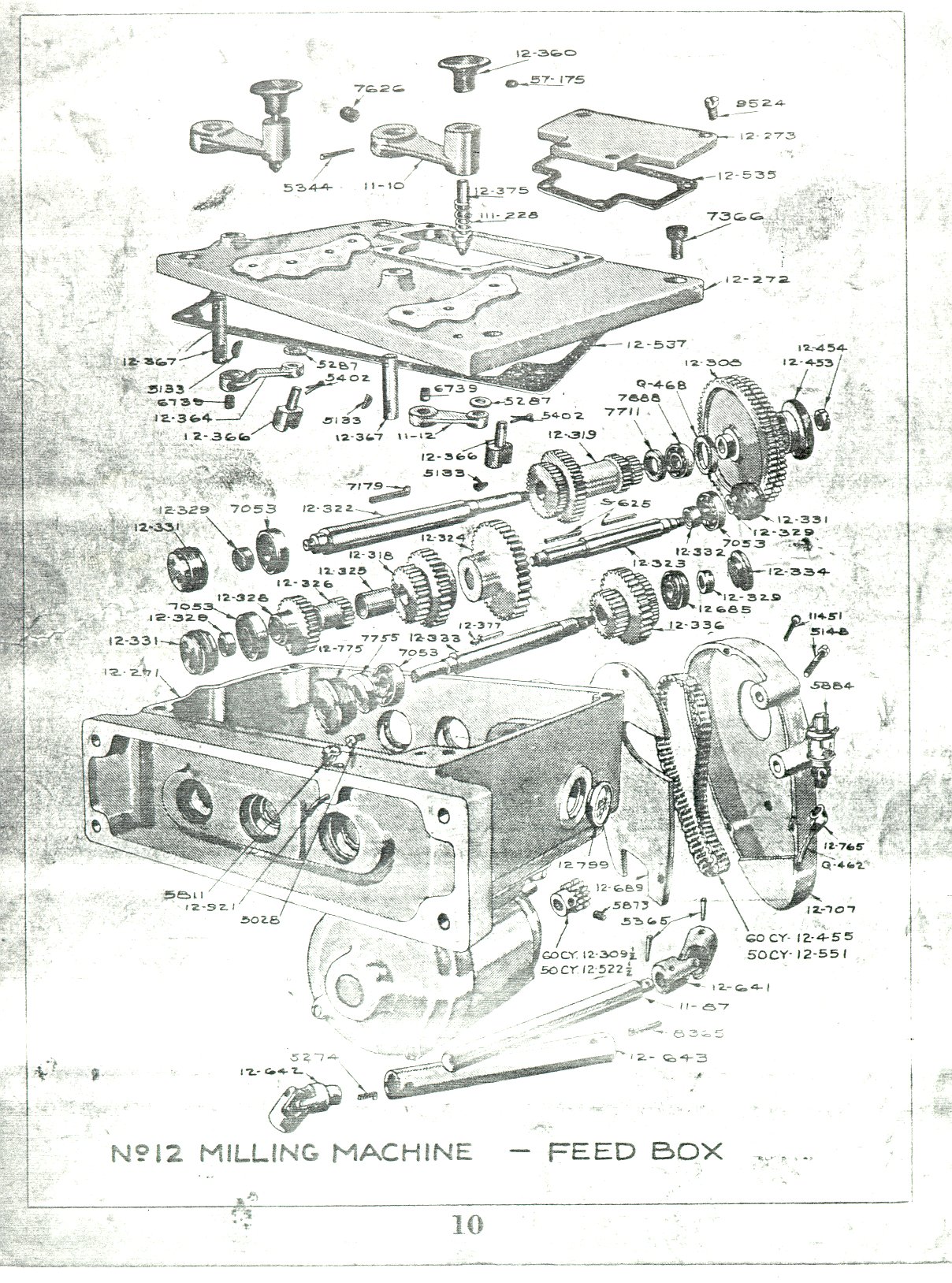

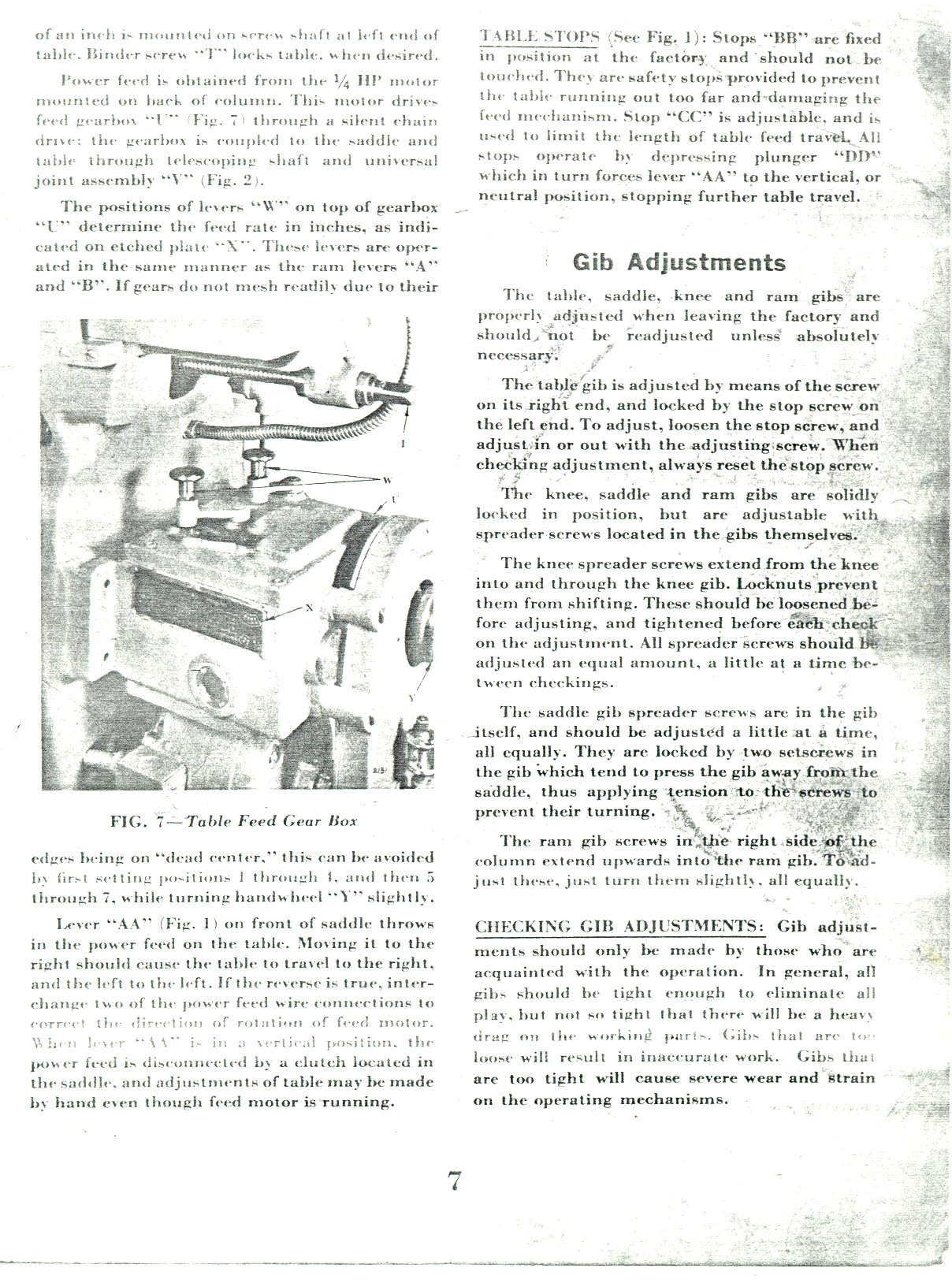

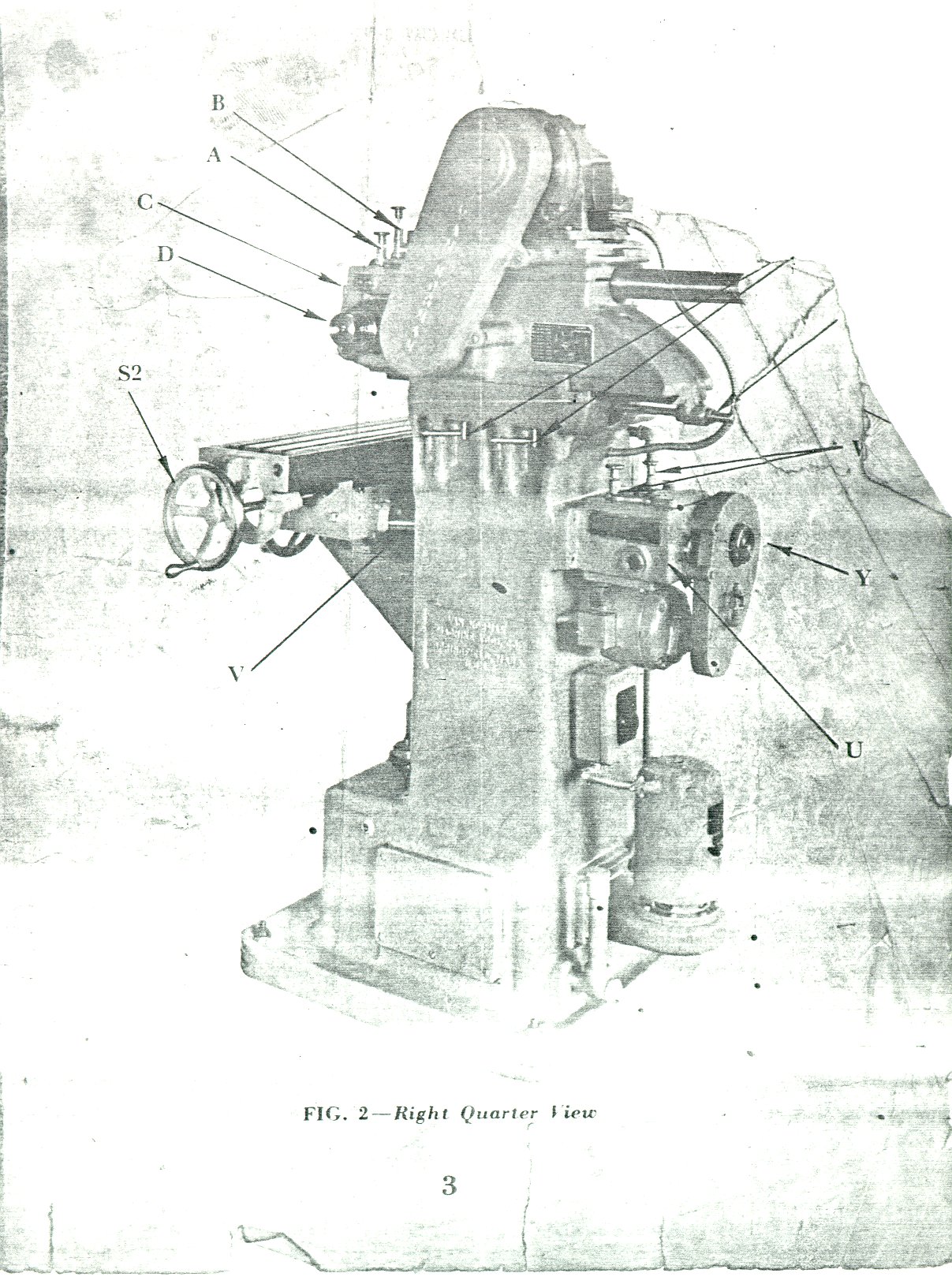

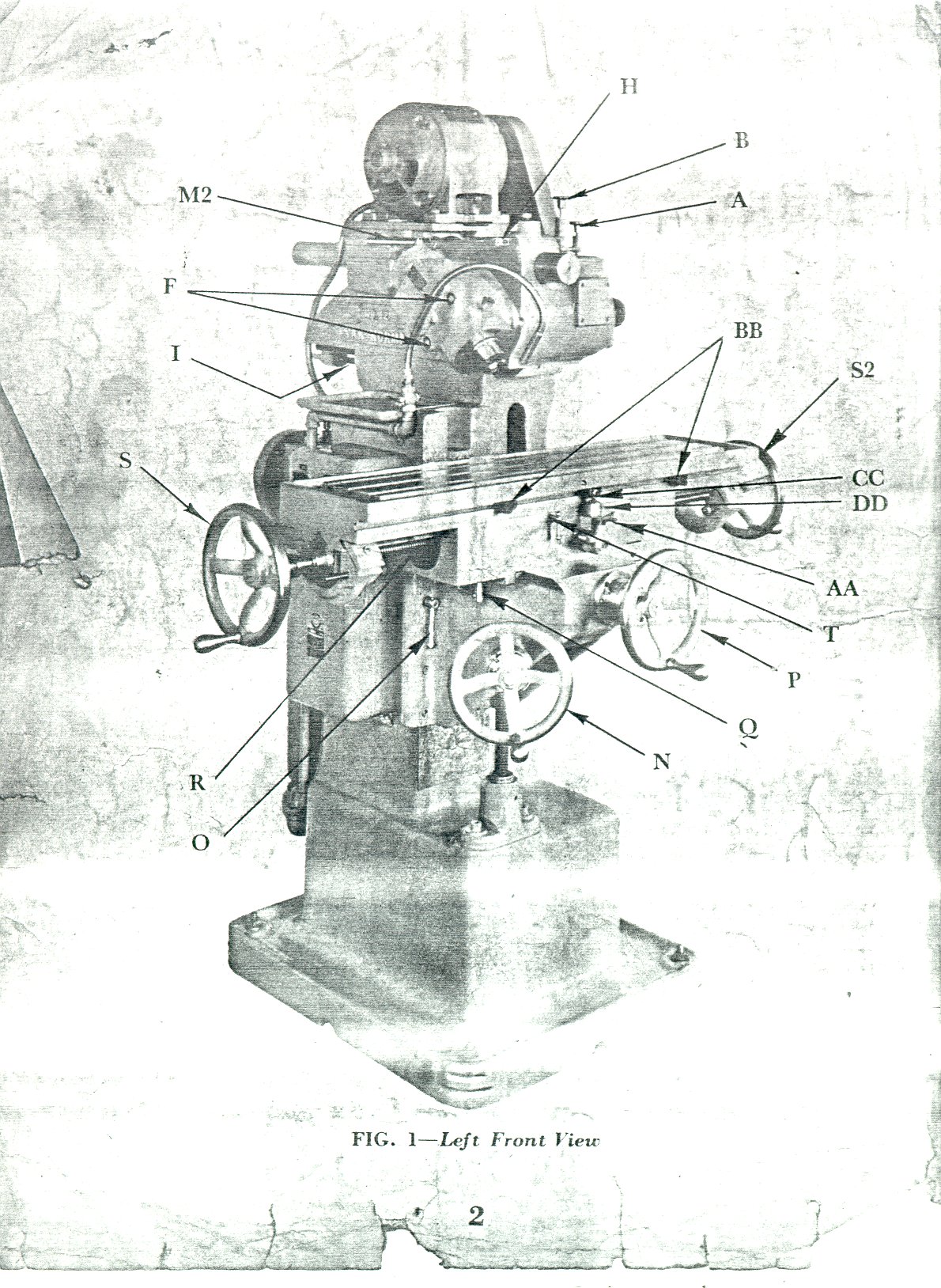

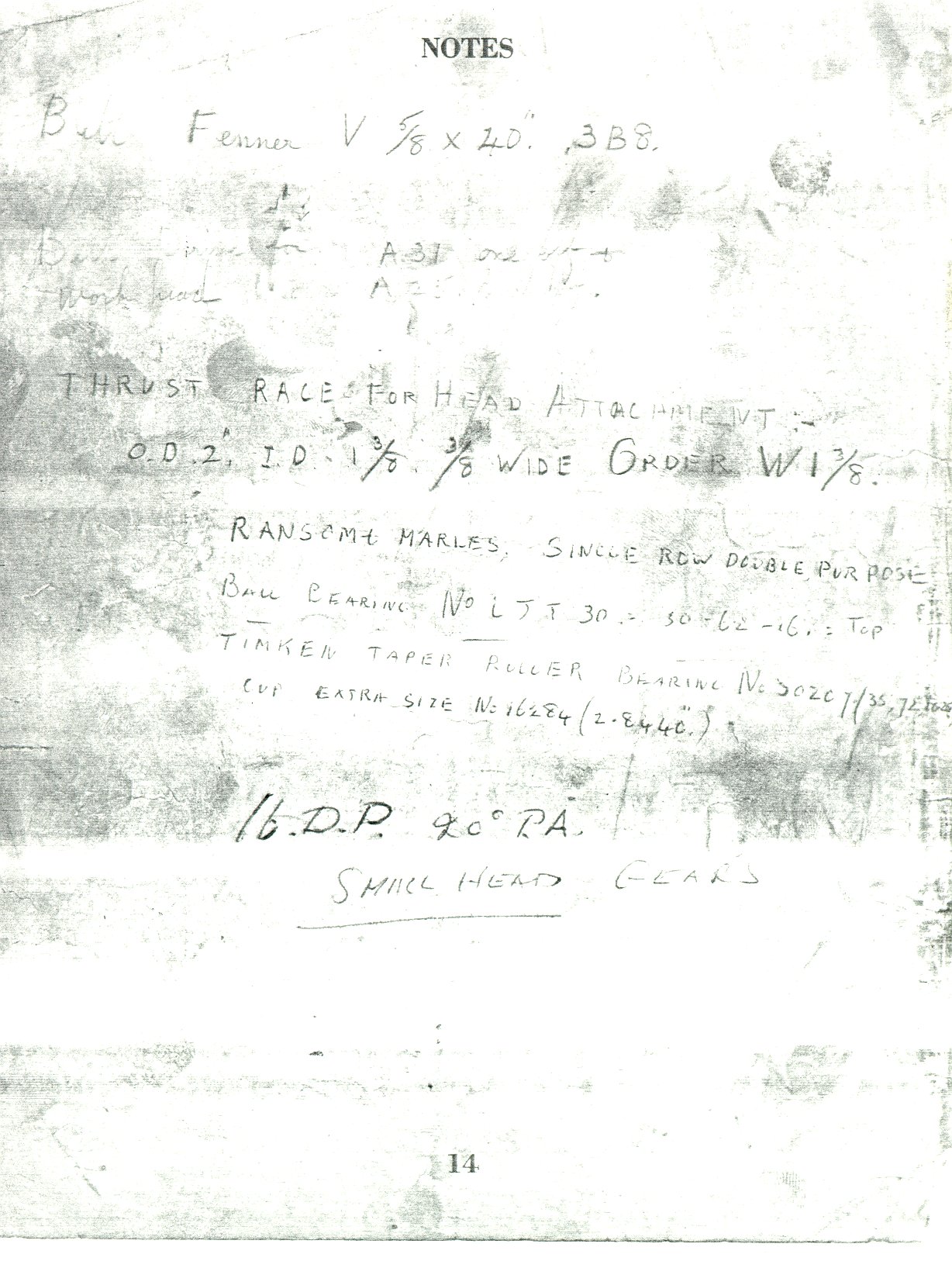

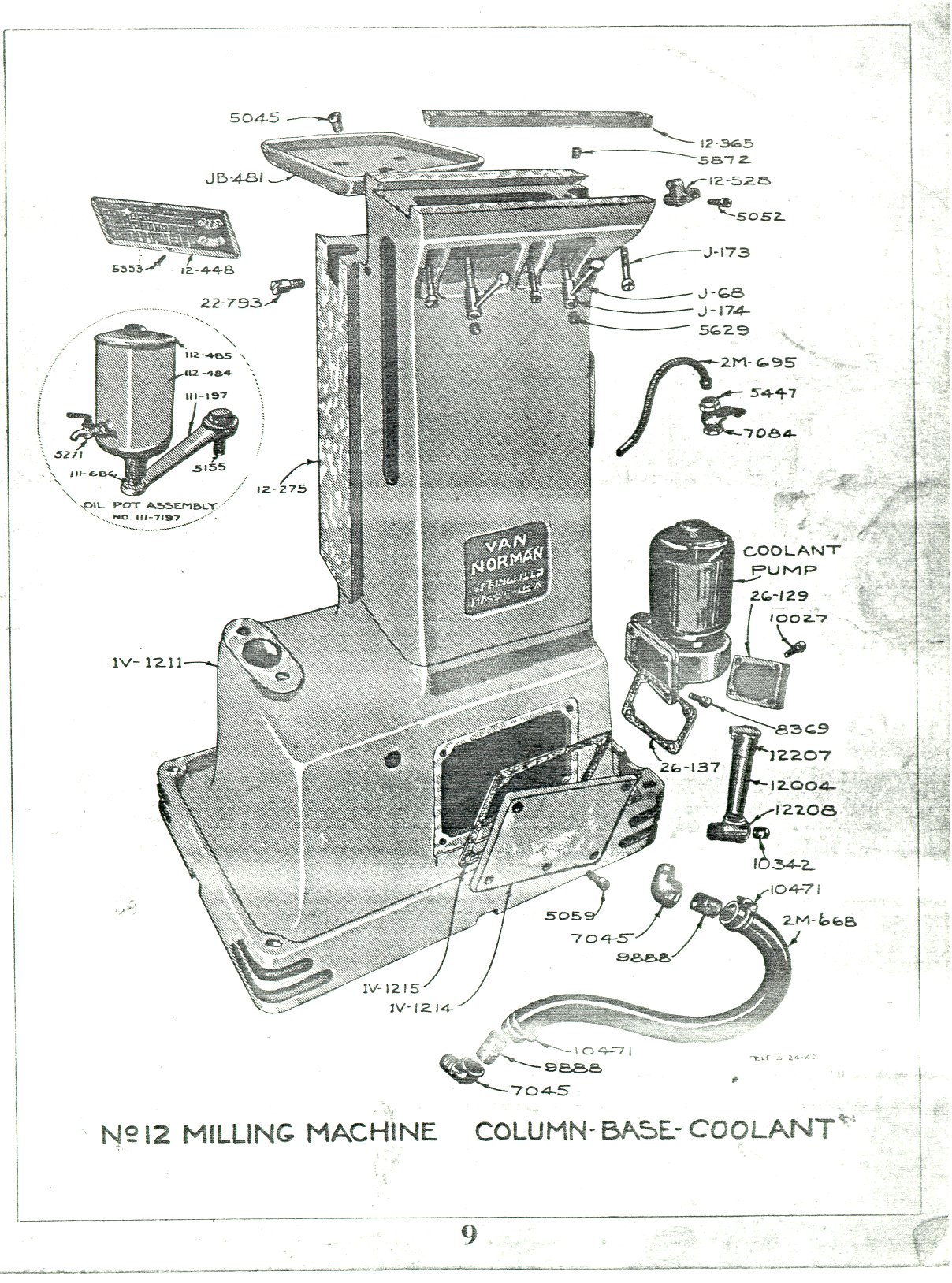

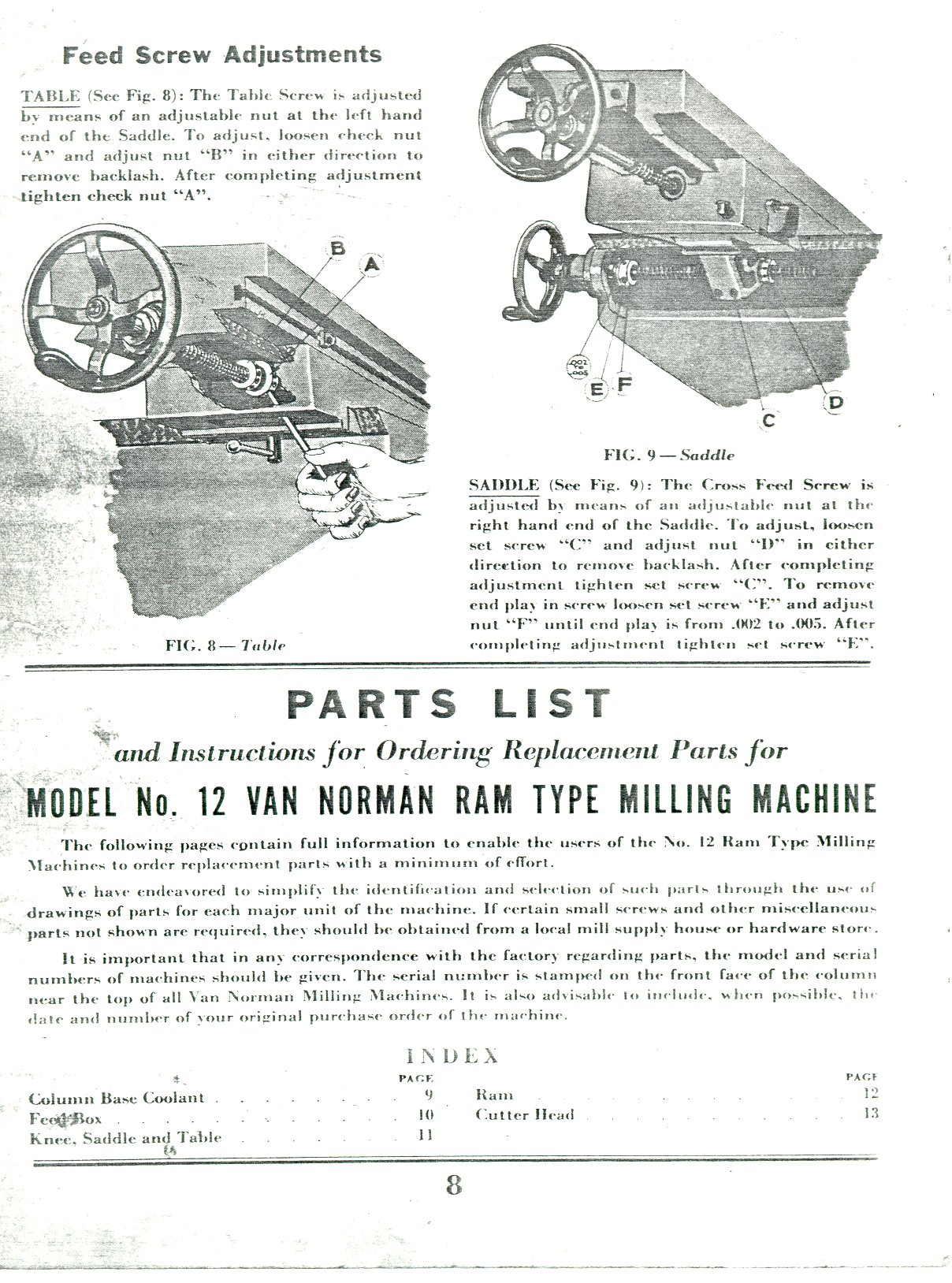

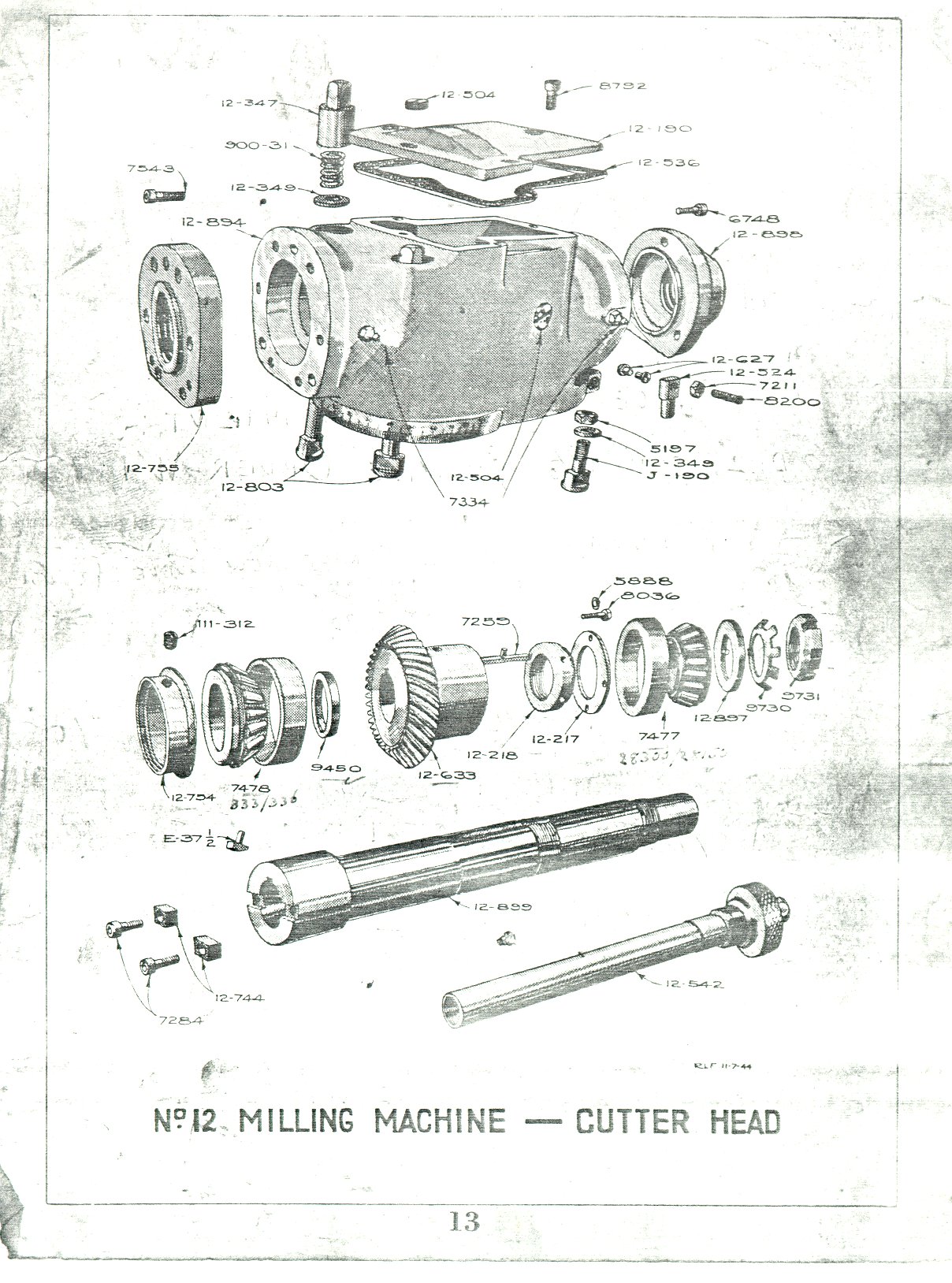

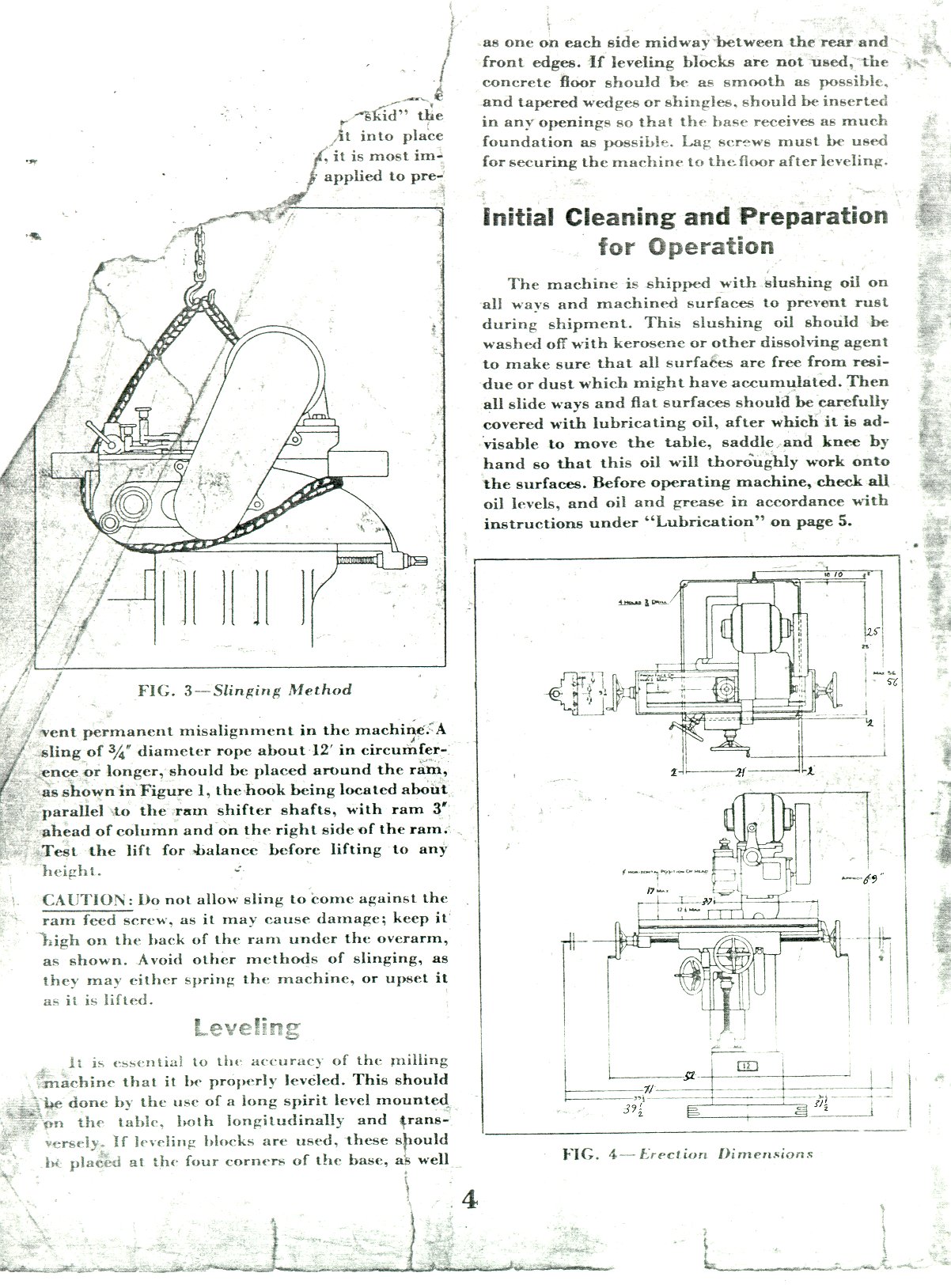

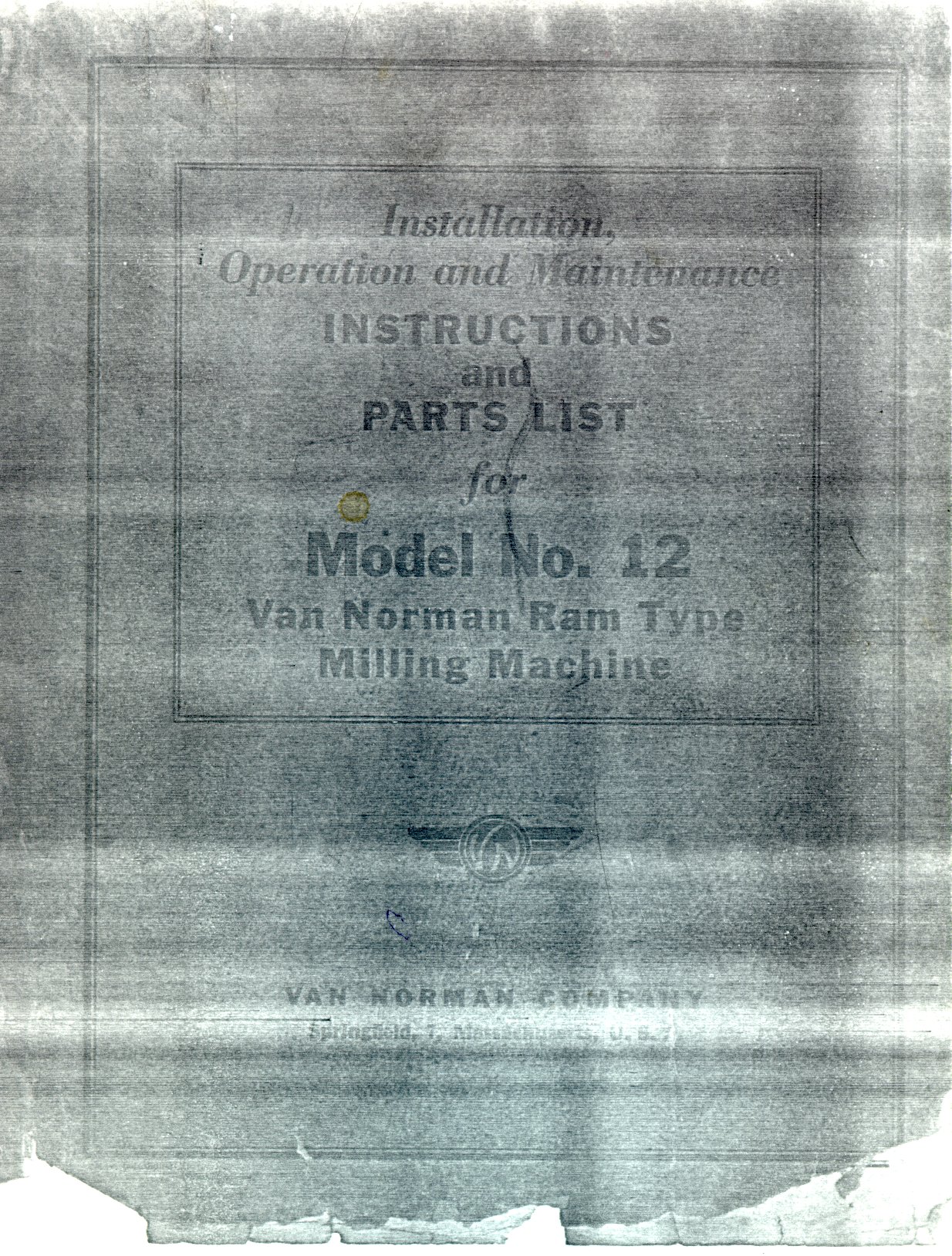

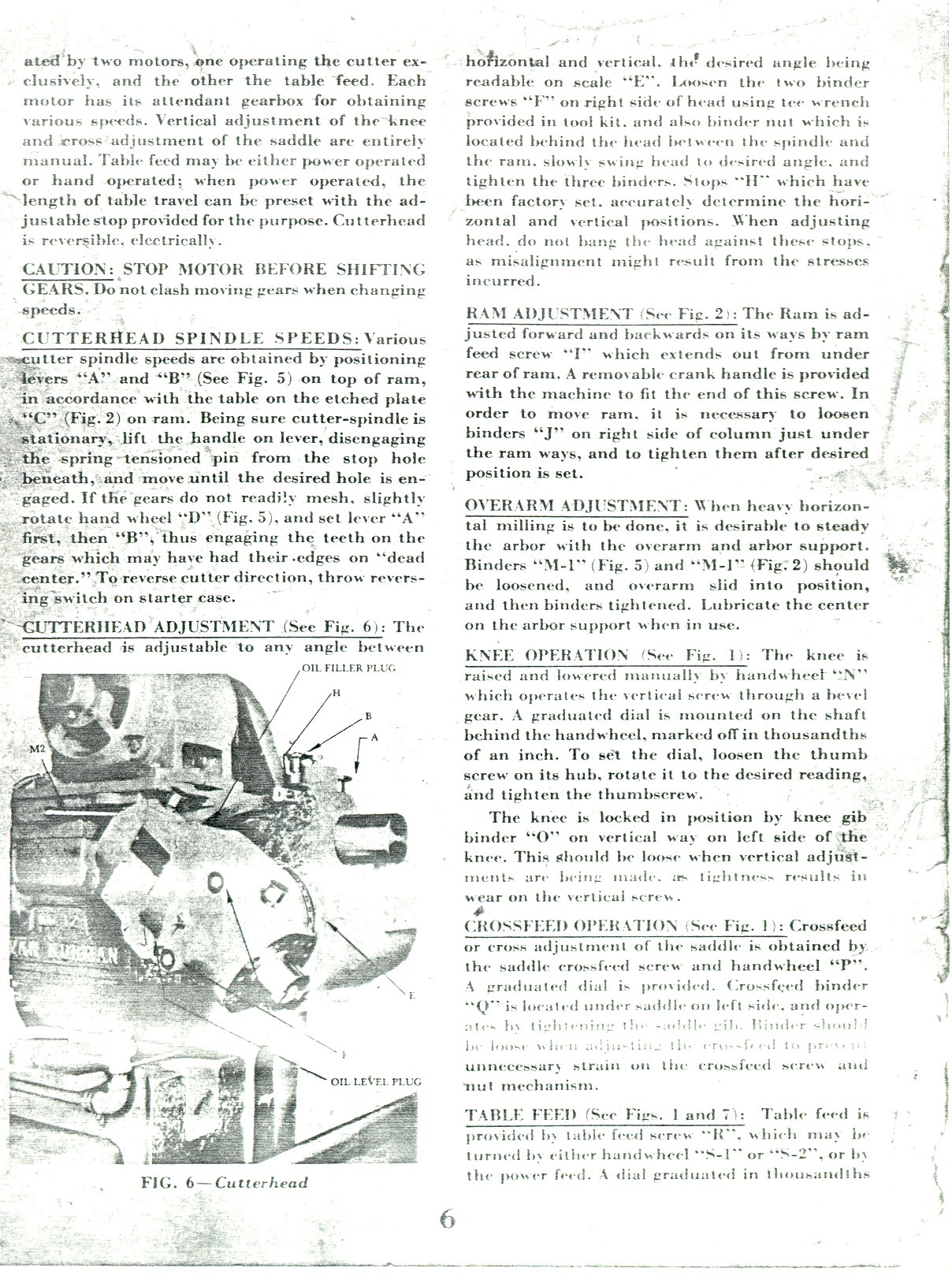

Cover Intro Left Front View Right Quarter View Moving and Inital setup Wiring and Lubrication Operation Operation and Gib adjustment Adjusments and parts list index Column and base parts list Feed Box parts list knee, saddle and table parts list Ram parts list Cutter head parts list Notes page, some notes on bearings and belts

Everything in one zip (6.4 meg) vannorman.zip
